Sale!

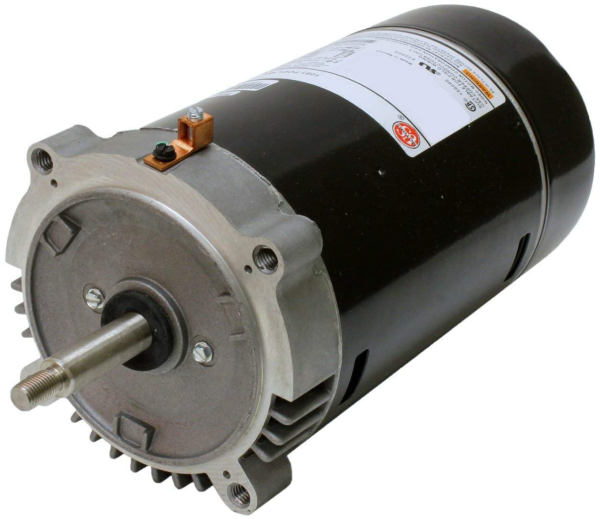

Nidec 1 HP Square Flange Pool & Spa Motor – ASB841
Original price was: $97.72.$54.29Current price is: $54.29.
Nidec ASB841 FHP Full Rated Square Flange Pool & Spa Motor; Open Dripproof, 56Y, 1-Speed, 1 HP, 208-230/115 V, 7.6-7.2/14.4 A, Threaded Shaft
- Two compartment
- 1081 design
- Shaft Threads – 1/2-20 UNF-2A
- Voltage selection device (Dual Voltage Only)
- Triple bearing protection
- Premium efficient, full service factor (Suitable For 50 HZ, 1.0 SF)
| Ambient Temperature | 50° C |
| Bearing Type | Sealed Ball |
| Brand | U.S. Motors |
| Duty Cycle | Continuous |
| Enclosure Design | Open Dripproof |
| Flange Type | Square |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 7.6-7.2/14.4 A |
| HP Rating | 1 |
| Insulation Class | B |
| Item | Pool & Spa Motor |
| Length Less Shaft | 11.74 Inch |
| Motor Shaft Rotation | CW |
| Motor Thermal Protection | Automatic Reset |
| Number of Speeds | 1 |
| Overall Length | 13.71 Inch |
| Phase | 1 |
| RPM | 3450 |
| Series | Category S |
| Service Factor | 1.65 |
| Shaft Design | Threaded |
| Shaft Diameter | 0.625 Inch |
| Shaft Length | 0.5 Inch |
| Shaft Material | 303 Stainless Steel |
| Sub Brand | Aqua-Shield |
| Type | FHP, Switchless Design, Full Rated |
| Voltage Rating | 208-230/115 V |
